Widely used in the circulating and non-circulating cooling water system, heat exchange system, central air conditioning system, central heating system, hot water boiler system in the industries of construction, chemical, electric power, metallurgy, rubber, textile, coal, agriculture, municipal and food, etc. to clear the impurities in water, to improve water quality and to protect key equipments in the systems.
All Products

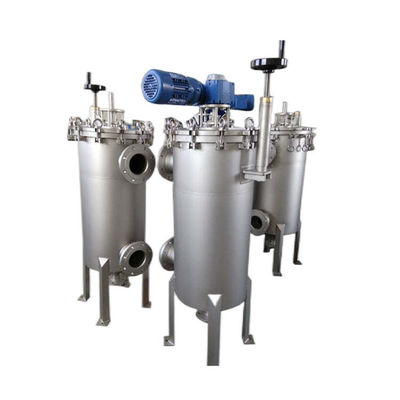

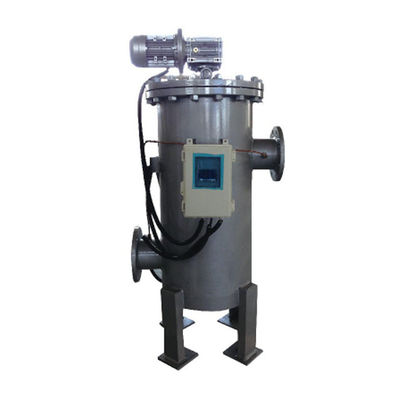

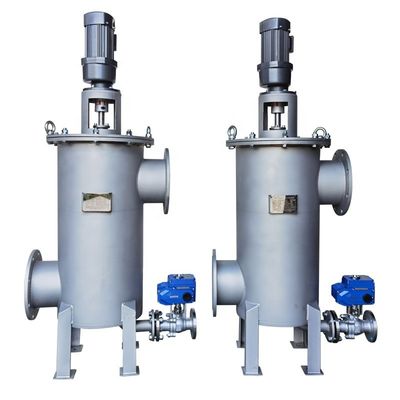

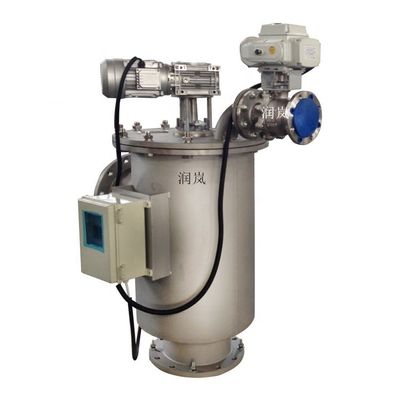

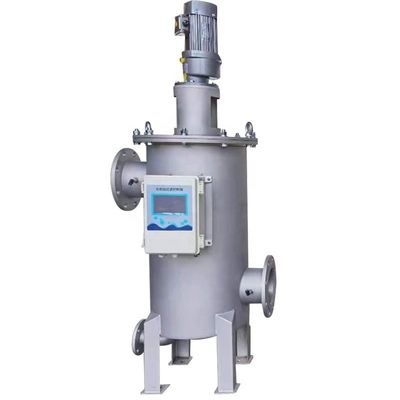

25KG Other Large Flow Rate Full Auto Self Cleaning Brush Filter Lubricating Oil Filtration
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | Runlan |
| Minimum Order Quantity | 1 |
| Price | $3,000.00 - $5,000.00/sets |
| Packaging Details | Plywood Case |
| Supply Ability | 1000 Set/Sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Other |
|---|---|---|---|
| Weight (KG) | 25 | Showroom Location | Egypt, United States, Russia, UAE, Kazakhstan, Malaysia, Australia |
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
| Marketing Type | Hot Sales Product | Warranty Of Core Components | 12 Months |
| Core Components | PLC, Pressure Vessel, Pump | Warranty | 12 Months, 12 Months |
| Product Name | Full-automatic Backwash Syrup Filter | Type | Liquid Filter |
| Color | Silvery | Power | 80-2700W |
| Blowdown Time | 30s-90s | Pressure Loss | 0.016Mpa |
| Nominal Pressure | 1.0Mpa | Filtration Area | 1175-31796cm2 |
| Weight | 87-920kg |
Product Description
Product Description
RHZQX-L Three Different Flushing Control Modes:
Pressure differential control:
The control system compares in real time the sustem differential pressure with the pre-defined value. When the system differential pressure is below the pre-defined value, the filter begins filtering; when the system differential pressure is above the pro-defined value, the filter begins flushing.
Time control:
Users can define the filtering time and flushing time according to actual situation; the fully automatic filter with heavy flow rate keeps its dutycycle operation according to the pre-defined filtering time and flushing time.
Manual control:
When the fully automatic filter with heavy rate is under manual control, press the button of START and hold it, it flushes automatically, let go hold of the button, flushing stopped.
Specification
item | value |
Condition | New |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Other |
Weight (KG) | 25 |
Showroom Location | Russia, Australia |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | hot sales product |
Warranty of core components | 12 months |
Core Components | Pressure vessel, Pump |
Place of Origin | China |
Shanghai | |
Brand Name | Runlan |
Warranty | 12 months |
Product name | Full-automatic backwash syrup filter |
Type | Liquid Filter |
Color | Silvery |
Power | 80-2700W |
Blowdown time | 30s-90s |
Pressure loss | 0.016Mpa |
Nominal pressure | 1.0Mpa |
Filtration area | 1175-31796cm2 |
Weight | 87-920kg |
Warranty | 12 months |
