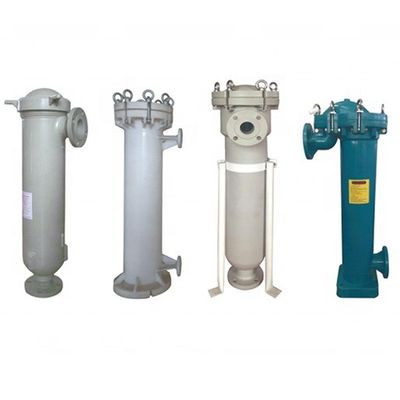

80C Design Temperature Polypropylene Filter Housing for Seawater Filtration Efficiency

Place of Origin Shanghai, China
Brand Name Runlan
Minimum Order Quantity 1
Price $380.00/sets 1-2 sets
Packaging Details Plywood Case
Supply Ability 10000 Set/Sets per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Applicable Industries Manufacturing Plant, Food & Beverage Factory, Other
Weight (KG) 25 Showroom Location Russia, Australia
Video Outgoing-inspection Provided Machinery Test Report Provided
Marketing Type Hot Sales Product Warranty Of Core Components 12 Months
Core Components Pressure Vessel, Pump Warranty 12 Months, 12 Months
Product Name PP Bag Filter Housing Type Single Bag Filter
Connection Flanged Seal Type O-type Seal Ring
Filter Media Filter Bags Design Temperature 80℃
Design Flow 20-40m3/h Micron Rating 1~800um
Material Polypropylene
Leave a Message
Product Description
Product Description
80C Design Temperature Polypropylene Filter Housing for Seawater Filtration Efficiency 0


Material: Polypropylene (PP)
Connection type: Flange
Seal material: BUNA/VITON
Seal type: O-type seal ring
Apply to a strainer : 2# filter bags
Design pressure: 0.3Mpa
Max working temperture: 80℃
Design flow: 20-40m3/h
The inner-side is very smooth, no ditch, no dead angle, easy to wash
Suitable for the occasion of strong corrosive

Features

● Strong pressure resistance, large flow rate, high filtration efficiency and long service life
● Good sealing, all the sealing rings are made of fluorine rubber, which makes the corrosion resistance better
● Suitable for installation of intrnational standard size #2 multi-bags, and international general standard flange

● The maximum working temperature of PP filter housing is 90°C and the maximum working pressure is 1MPa
● PP bag filter housing is suitable for hydrochloric acid with a concentration of 36% and sulfuric acid with a concentration of less than 90%

Specification
item
value
Condition
New
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Other
Weight (KG)
25
Showroom Location
Russia, Australia
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
hot sales product
Warranty of core components
12 months
Core Components
Pressure vessel, Pump
Place of Origin
China
Shanghai
Brand Name
Runlan
Warranty
12 months
Product name
PP bag filter housing
Type
single bag filter
Connection
Flanged
Seal type
O-type seal ring
Filter media
filter bags
Design Temperature
80℃
Design flow
20-40m3/h
Micron Rating
1~800um
Material
Polypropylene
Warranty
12 months
80C Design Temperature Polypropylene Filter Housing for Seawater Filtration Efficiency 1
Applicable industry
80C Design Temperature Polypropylene Filter Housing for Seawater Filtration Efficiency 2
Certifications
80C Design Temperature Polypropylene Filter Housing for Seawater Filtration Efficiency 3
Packing & Delivery
80C Design Temperature Polypropylene Filter Housing for Seawater Filtration Efficiency 4
Company Profile
80C Design Temperature Polypropylene Filter Housing for Seawater Filtration Efficiency 5
FAQ
80C Design Temperature Polypropylene Filter Housing for Seawater Filtration Efficiency 6
80C Design Temperature Polypropylene Filter Housing for Seawater Filtration Efficiency 7
