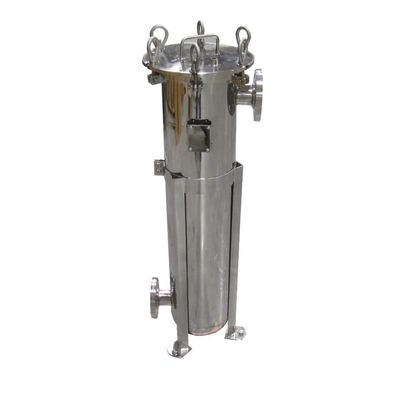

Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material

  • Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material
  • Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material
  • Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material
  • Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material
  • Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material
  • Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material
Place of Origin Shanghai
Minimum Order Quantity 1
Price $1,120.00/sets 1-9 sets
Packaging Details Plywood Case
Supply Ability 100 Set/Sets per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applicable Industries Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert Weight (KG) 62
Showroom Location Egypt, United Kingdom, France, Germany, Viet Nam, Philippines, Brazil, Pakistan, Mexico, Spain, South Korea, Algeria, Bangladesh, Ukraine, Kyrgyzstan, Malaysia, Australia Video Outgoing-inspection Provided
Machinery Test Report Provided Marketing Type Hot Product 2019
Warranty Of Core Components 1 Year Core Components PLC, Engine, Bearing, Pressure Vessel, Gear
Warranty 1 Year Port Shanghai
Leave a Message
Product Description
Product Description
Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material 0

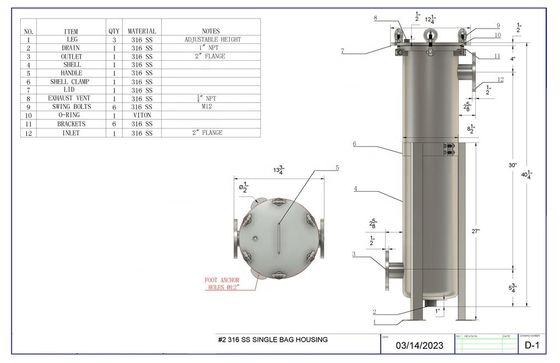

* 316 Stainless Steel Construction
* 8”x 30” Trade Size # 2 Housing
* 2” Flanged Inlet and Outlet Connections

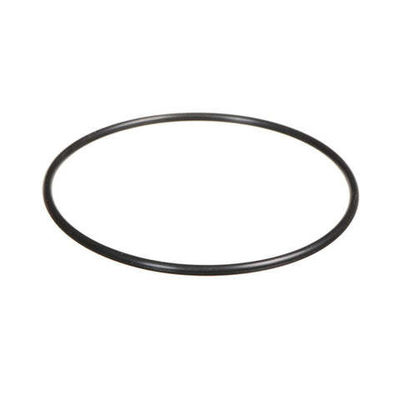

* Viton® O-rings standard
* 150 psi Maximum Working Pressure
* 100 gpm Max. Flow Rate
* Operating Temperature: normal range of 50°F - 90°F. Variance outside of this temperature range will affect maximum operating pressure rating. Liquids operating at elevated temperatures pose a risk of burns.
* Stainless Steel Strainer Basket and Internal Bag Support Rack
* Drain Port and Mounting Stand
* Safety Release Vent for Maintenance
* Head loss is negligible with an empty housing and clean bag(s)
Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material 1

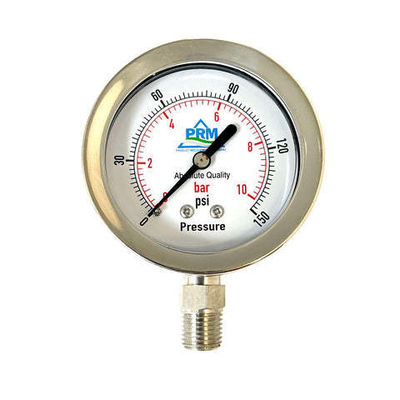

Pressure Gage

Real-time pressure in the filter can be directly observed.
Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material 2

Exhaust Valves

The safety ball valve releases and exhausts pressure with one click, preventing excessive pressure inside the filter and extending the service life of the machine.
Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material 3

1″Inlet/Outlet

1″inlet and outlet (internal thread), with a side in and bottom out filtration method, allows liquid to flow from high to low, and the filter bag is not affected by turbulence, improving its filtration efficiency and service life.
Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material 4

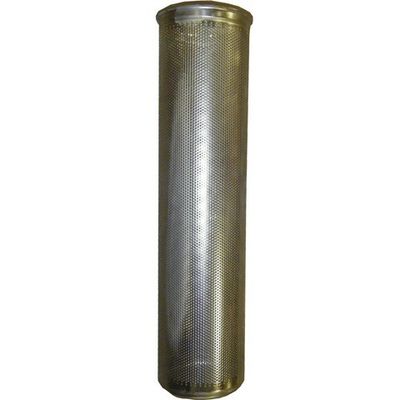

Stainless Steel Strainer And Filter Bag

The filter comes with a 5-mesh stainless steel strainer and a 20 μm filter bag. The filter bag can be cleaned and reused.
Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material 5

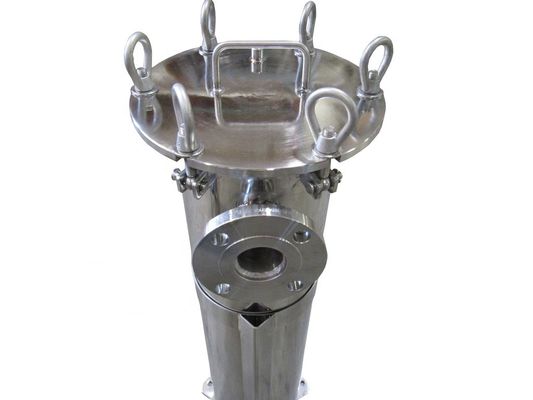

Eyenut

M12 eyenut, fastening the lid, easy and fast.
Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material 6

Movable Leg

The height of the support legs is 300mm. Based on the height of the inlet and outlet, the height of the machine from the ground can be determined by adjusting the support legs.
Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material 7
Packing & Delivery
Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material 8
Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material 9
Plywood Case
Company Profile
Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material 10
Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material 11
Restaurant Bag Filter Housing with 62KG Weight and 316 Stainless Steel Material 12
FAQ
Question 1: Are you manufacturer?
Yes, we are manufacturer with 5 production lines, R&D and oversea market department.

Question 2: Can you provide OEM service?
Yes, we have more than 10 years of OEM experience and provide this service.

Question 3: Can you provide sample? Free or chargeable?
Yes, we can provide free sample for filter elements, all filter housings are chargeable.

Question 4: Does the product support customization? Products can be customized base on our current mould.

Question 5: What is the payment terms?
TT/LC, Via Alibaba.

Question 6: How to choose the shipping way? It depends on the order QTY, detailed information, please refer to our [packing&shipping].
