Industry-Grade Stainless Steel Bag Filters for Water and Oil Filtration Standard Size

Place of Origin Shanghai, China
Brand Name Runlan
Minimum Order Quantity 1
Price $460.00/sets 1-99 sets

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applicable Industries Manufacturing Plant, Food & Beverage Factory Video Outgoing-inspection Provided
Machinery Test Report Not Available Warranty Of Core Components 1 Year
Core Components Motor, Pressure Vessel Condition New
Efficiency 99.99% Construction Bag Filter
Porosity 0.5μm-1000μm Dimension(L*W*H) Standard Size
Weight 25 KG Warranty 1 Year
After-sales Service Provided Engineers Available To Service Machinery Overseas Connector Type Internal Thread/flange
Material SUS304, SUS316L Sealing Material BUNA, Silicone, VITON
Sealing Form O-rings Applicable Filter Bag 1#(180mmD*410mmL), 2#(180*810), 3#(102*210), 4#(102*380)
Design Pressure 1.0 MPa Design Flow 6-40 T/h
Surface Treatment Abrasive Blasting/polishing Other Characters Side Inlet, Adjustable Feet
Leave a Message
Product Description
Product Description
Industry-Grade Stainless Steel Bag Filters for Water and Oil Filtration Standard Size 0
Industry-Grade Stainless Steel Bag Filters for Water and Oil Filtration Standard Size 1



Material: SU304/SUS316L
Connection type: Flange
Seal material: BUNA/Silicone/VITON
Seal type: O-type seal ring
Apply to a strainer: 1#/2# bags
Design pressure: 1.25Mpa
Design flow: 20-40m3/H

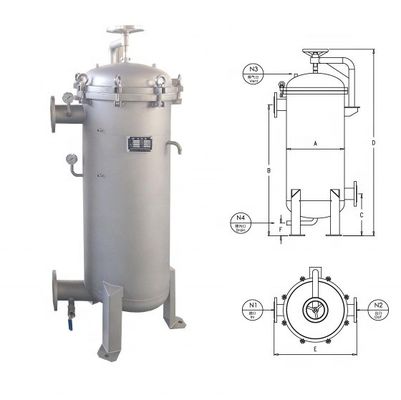

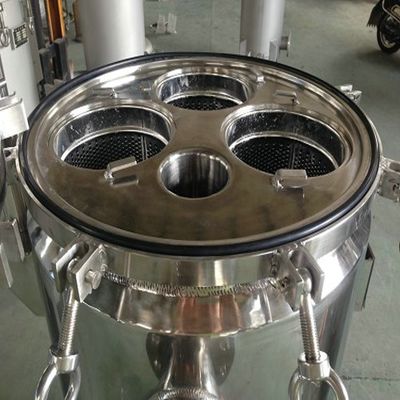

Cover hold down filter bags foe good 360° sealing TOP-loading type of bag filter housing



Industry-Grade Stainless Steel Bag Filters for Water and Oil Filtration Standard Size 2
PRODUCT OVERVIEW:
Material:SUS304、SUS316L Connection type:flangeSeal material:BUNA、silicone、VITON
Seal type:O-type seal ring
Apply to a strainer:l#、2#filter bags
Design pressure:1.25Mpa
Design flow:20-40m3/H
Surface disposal:sandblast or electrolytic polishing
Mounting legs with adjustable heightsealing
Cover hold down filter bags for good 360“
TOp-loading type of bag filter housing

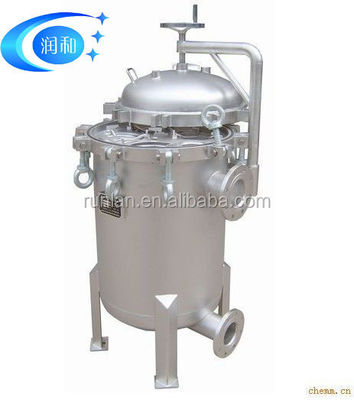

The cap is adopted wax patter to casting molding,itcan wildly application in all kinds of industry and also can make ofheat
preservation jacket typeaccording to the requirements.
Industry-Grade Stainless Steel Bag Filters for Water and Oil Filtration Standard Size 3
Industry-Grade Stainless Steel Bag Filters for Water and Oil Filtration Standard Size 4
Industry-Grade Stainless Steel Bag Filters for Water and Oil Filtration Standard Size 5
Specification
Industry-Grade Stainless Steel Bag Filters for Water and Oil Filtration Standard Size 6
Applicable industry
Industry-Grade Stainless Steel Bag Filters for Water and Oil Filtration Standard Size 7
Certifications
Industry-Grade Stainless Steel Bag Filters for Water and Oil Filtration Standard Size 8
Packing & Delivery
Industry-Grade Stainless Steel Bag Filters for Water and Oil Filtration Standard Size 9
Company Profile
Industry-Grade Stainless Steel Bag Filters for Water and Oil Filtration Standard Size 10
Industry-Grade Stainless Steel Bag Filters for Water and Oil Filtration Standard Size 11
FAQ
Industry-Grade Stainless Steel Bag Filters for Water and Oil Filtration Standard Size 12
Industry-Grade Stainless Steel Bag Filters for Water and Oil Filtration Standard Size 13
